Sound Limiters: The Guide for Musicians, Venues & Clients

Sound Limiters: The Guide for Musicians, Venues & Clients

Introduction

The mere mention of sound limiters can often fill clients and bands with dread. With the fear of your guests being plunged into darkness and silence hanging over your special day, your vision of a perfect wedding day can quickly descend into a nightmare!

However, sound limiters themselves needn’t be so complicated, nor frightful. Below, we’ve written a quick and easy guide to explain the following points:

Contents:

  1. What is a Sound Limiter?
  2. Why Do Venues Have Sound Limiters Installed?
  3. Decibels (dB) & the Decibel Scale
  4. Are All Sound Limiters the Same?
  5. What Venues Should Be Telling You Before Booking
  6. Problems Musicians Face When Working with Sound Limiters
  7. How Can Bands Accommodate Sound Limiters?
  8. Useful Advice on Booking the Right Live Music for Your Venue

Looking to Hire a Band who can work with a Sound Limiter? Click Here!

What is a Sound Limiter?

To put it simply: a sound limiter monitors the sound level in a room via a built in microphone, making sure it does not exceed a certain limit. The units used to measure ‘loudness’ are called decibels (dB).

If the noise in the room exceeds the pre-set limit for a certain amount of time (e.g. for more than 7-10 seconds) then the sound limiter will cut the power supply to the music. The venue’s staff will then have to reset the limiter in order to turn the power back on again.

Most limiters are fitted with a traffic light system to help warn musicians and staff when the noise is getting close to exceeding the limit. As long as this is visible, the musicians can keep their eye on this and adjust their levels discreetly (if needed) to avoid the power being cut.

However, if the band have cranked up their amps and the guests are all singing ‘Don’t Look Back In Anger’ at the top of their lungs, then the sound limiter may well cut the power. If tripped multiple times within a certain time frame, then it could take 15 minutes or longer to come back on again.

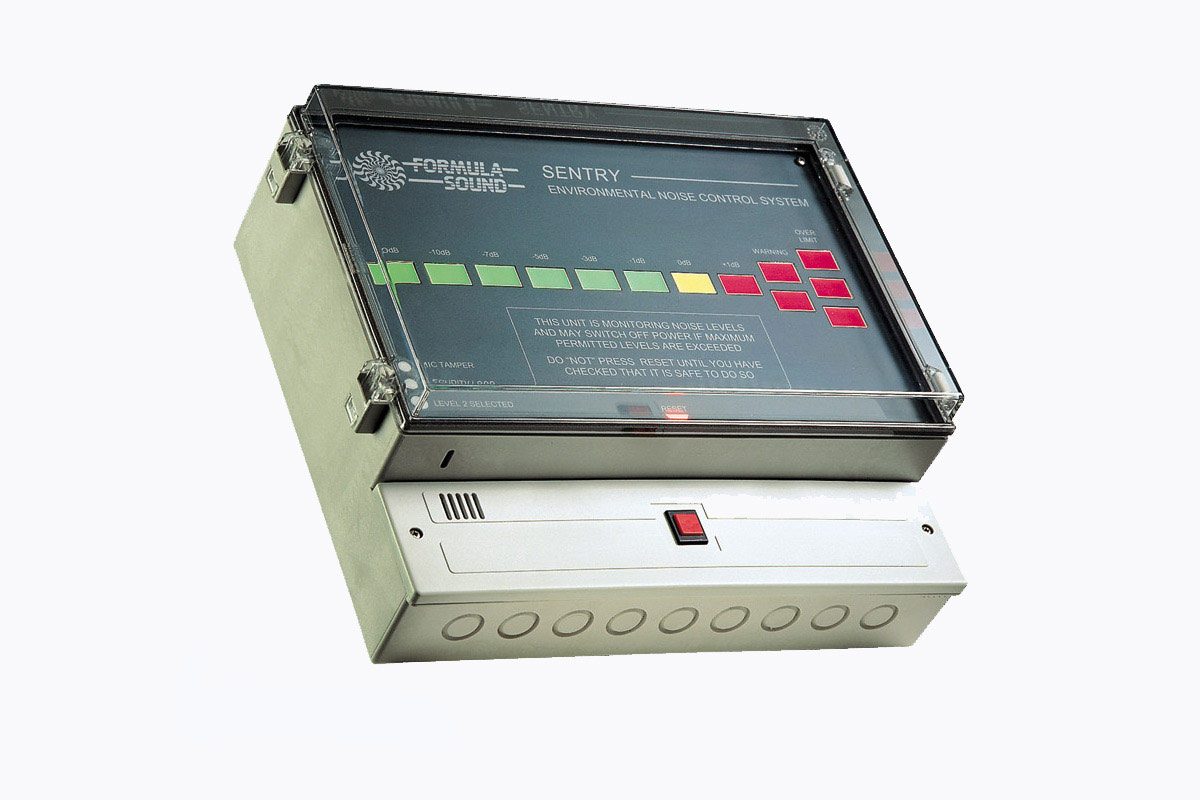

,Sentry Sound Limiter

Why Do Venues Have Sound Limiters Installed?

You may be surprised to hear that venues are not legally required to install a sound limiter, yet they’re becoming increasingly popular in the UK – and there are a number of reasons for why this is.

A venue can be subject to noise complaints from surrounding neighbours if they hold weddings or live events. This can lead to local councils setting up a sound control plan in order to minimise their noise pollution.

Installing a limiter enables the venue to keep a track on these levels so they can minimise noise complaints and avoid receiving fines, prosecution or even worse – have their licence removed altogether!

Also, the venue have to be mindful of their staff working in these environments. Employers now have to uphold The Control of Noise at Work regulations 2005. This was put in place to help reduce the risk of employees suffering partial or total loss of hearing by controlling the noise they’re exposed to whilst working.

Decibels (dB) & the Decibel Scale

The human ear is incredibly sensitive, which makes measuring sound rather odd. We can hear everything from a pencil being sharpened to a space shuttle being launched. So how can we compare different levels of loudness so that it all makes sense?

Decibels (dB) are the unit we use to measure sound. We refer to this as a logarithmic unit and basically means that a small increase in decibels indicates a large increase in intensity.

For example, 10dB is ten times more intense than 1dB...

...and 20dB is a hundred times more intense than 1dB.

The decibel scale was created to help measure these sounds in a way that we can make sense of it all. Below is a decibel scale comparison chart to help us understand this further:

The Decibel Scale Sound Limiter

Are All Sound Limiters the Same?

A very good question! There are actually two types of sound limiter: Automatic Volume Controllers and Electronic Sound Monitoring and Mains Power Switching Units, both of which come in a variety of models and makes.

Automatic Volume Controllers are connected between the sound source (e.g. an audio mixer or karaoke machine) and the main power amplifier. This requires bands to plug their gear into the limiter which will continually monitor the sound level and reduce the volume if the limit is exceeded. They are permanently installed at the venue and work in conjunction with an environmental noise control unit.

The band essentially have no control when using these types of sound limiters, which is why they are not the most popular to work with. If the limiter is incorrectly set, then this could trigger unnecessary power cuts to the bands gear and potentially damage equipment that’s connected to it i.e. laptops, valve amplifiers etc.

The second type of limiter is the one we’ve previously discussed. They work on a traffic light system, which will indicate when the levels are close to being exceeded (Green = okay, Amber = warning, Red = power will be cut shortly if sustained). The limit is set by environmental health officer; this dB limit depends on a multitude of different factors, like the location of the venue and their surrounding neighbours.

Side note: you may also come across venues who have sound ceilings installed. These systems use directionals speakers that essentially keep the music pointed at the dance floor as well as also helping to severely reduce the sound as it flows away from this area.

Most bands prefer not to work with these, as they definitely don’t reflect a live band’s energy and also make it difficult to engage other guests in the room who are not on the dance floor. They are ideal for DJs and smaller venues who need to be very mindful of their surrounding neighbours. However, there are bands out there who will work with them – you just might find it’s the rock & indie bands who politely decline playing at such venues.

DJ Set Up Sound Limiter

What Venues Should Be Telling You Before Booking

If your venue has a sound limiter installed, then it is their responsibility to make you aware of this prior to signing any contract. You should be informed of the type of limiter installed at the venue, how it is monitored and what dB limit it is capped at.

Trained venue staff should be present on the day who know how the sound limiter works. They should be able to explain to the musicians how it works and be able to reset it if it were to trip the power on the day.

*Tip* Find out who is in charge of running the event at your wedding and make sure to pass their name and contact details on to the band to liaise with before and on the day of the event.

Please also be aware that, when hiring live music to perform at your chosen venue, it will be your responsibility to make sure the musicians are aware of the venue’s sound restrictions prior to booking.

Most venues will have a document you can send across to the entertainment agency or band detailing the technical specification of the limiter installed. More often than not, the venue will also need the band or agent to sign this document to confirm they’re happy to adhere to their sound policies.

Venue Advice on Sound Limiters

Problems Musicians Face When Working with Sound Limiters

A common problem for musicians performing at venues with sound limiters is that the limiter itself has not been correctly installed. If a sound limiter is not set correctly, it can cause all sorts of problems and make it completely impossible for a band to work with on the day.

Ideally, the sound limiter should be on the A-weighted setting and preferably not on the C-weighted setting. The A-weighted setting essentially mimics the human ear and the frequencies we can perceivably hear. The C-weighted setting is used for peak measurements, so it’s much more sensitive and easily triggered.

Sound limiters use a remote microphone – and the placement of this is absolutely key, as you do not want to have the band playing directly into this. Consider where the band will be placed on the day and make sure the microphone installed is at a healthy distance from them. The venue should be able to advise where best to place the band, as they will have had many bands play at their venue beforehand and should know what does and doesn’t work.

If a limiter is set at a ridiculously low volume, then you’ll need to be mindful of the fact that your guests could easily set it off as well. All it takes is a loud cheer or an applause at the end of a song to set off an extra sensitive limiter. In this instance, it’s worth choosing your venue carefully, as a venue should not really promote themselves for hosting live events if this is the case – for example, it’s very difficult for 100-150 guests to enjoy themselves if a limiter is set at 80dB (quieter than a hairdryer).

Sound Limiter Space at Venue

How Can Bands Accommodate Sound Limiters?

The good news is: there are plenty of bands out there that can accommodate sound limiters, but how do they achieve this?

An electric drum kit is the first port of call. An acoustic drum kit is usually the culprit when a limiter is set off (the snare to be precise!) so having an electric kit means the drummer can simply turn down the volume in order to keep within the desired parameters.

Brushes and hot rods are also a popular choice for percussionists. Brushes are typically used in jazz line ups, but can work nicely for a more ‘live lounge’ style of set if your venue’s limits are particularly strict. Hot rods are the next best thing to normal drum sticks, as they still have a great sound but at a much lower volume.

The cajon can be a last resort if the limiter in place is set to an incredibly low threshold. A cajon is essentially a box that drummers sit on to produce percussive sounds, which makes it perfect for accommodating low level sound limiters.

Direct input (DI) is a great way for bassists to tackle those low level frequencies. Bass amplifiers are often the ones to blame for noise complaints, as lower frequencies travel much farther than higher frequencies. By using a DI, the bassist can control their lower frequencies with ease.

In Ear Monitors (IEMs) are a great way for a band to monitor and maintain their sound levels. It also means not having to use floor monitors, all of which can contribute to creating extra unwanted noise.

Drum Kit Sound Limiters

Useful Advice on Booking the Right Live Music for Your Venue

Booking the right function band for your venue needn’t be complex, but there are some important points you should consider before you start looking.

Does your venue have a sound limiter? Be sure to find out exactly what is installed before approaching any bands, as they’ll need to know this information prior to booking.

What level is the limiter set at in dB? If the limiter is set lower than 110dB, then unfortunately you probably won’t be able to accommodate any brass instruments. If the limiter is set lower than 90dB, then you’ll most likely need to consider a band who has an electric drum kit or cajon to hand. If the limiter is set to 80dB or below then an acoustic act is definitely the way forward.

Does your venue allow acoustic drum kits to be used? If not, then you’ll need to make sure you find a band who can perform with electric drums (or no kit at all!).

A rock band will want to perform loudly, as they have a reputation to uphold, and rock music just doesn’t sound good when played quietly. Because of this, they’re most likely going to politely turn away any venues that have sound limiters set any lower than 100dB.

Channel Mixer Sound Limiter

Final Points

Musicians often get the blame when sound limiters go off, but in reality it’s often not anything to do with them directly. It’s worth remembering that any sound can set off a limiter, so it’s worth speaking in detail with your venue about their limiter and past events they’ve had. If possible, it would be worth contacting past clients who’ve had bands perform there to check everything went smoothly for their event.

A band will always do their upmost to accommodate sound limiters, but you’ll find most musicians make it clear that it is the client’s responsibility if the limiter cuts out due to the aforementioned reasons above.

A band would never perform loudly on purpose to set off a limiter and will always do their best to accommodate the sound restrictions in place. It’s worth remembering that the venue and band both want your event to be the best it can be, so it’s vital to maintain excellent communication between the two to make sure your event goes off with a bang...not literally, of course!

Flying Bride Sound Limiter

Foot Note: If you’re a venue and have sound restrictions in place, why not get in touch with us by clicking here – we have a wide variety of bands that can accommodate all types of sound limiters and we’d love to create for you your own personal page to send clients through to! Please feel free to email us and get in touch to discuss further – we look forward to hearing from you!
